Pertemuan 5 "Configuring Rapit PVST+"

Nama : Nur Aeni

Nim   : 13170649

Kelas : 13.4A.01

Mata Kuliah : Administrasi Jaringan

Konfigurasi Switch 1

S1>en

S1#configure terminal

S1(config)#enable password cisco

S1(config)#line consol 0

S1(config-line)#password cisco

S1(config-line)#login

S1(config-line)#line vty 0 4

S1(config-line)#password cisco

S1(config-line)#login

S1(config-line)#vlan 10

S1(config-vlan)#vlan 20

S1(config-vlan)#vlan 30

S1(config-vlan)#vlan 40

S1(config-vlan)#vlan 50

S1(config-vlan)#vlan 60

S1(config-vlan)#vlan 70

S1(config-vlan)#vlan 80

S1(config-vlan)#vlan 99

S1(config-vlan)#exit

S1(config)#interface fastEthernet 0/6

S1(config-if)#switchport mode access

S1(config-if)#switchport access vlan 30

S1(config-if)#no shutdown

S1(config)#do show vlan brief

S1(config)#int range fa0/1-4

S1(config-if-range)#switchport mode trunk

S1(config-if-range)#switchport native vlan 99

S1(config-if-range)#no shutdown

S1(config-if-range)#exit

S1(config)#interface vlan 99

S1(config-if)#ip address 172.31.99.1 255.255.255.0

S1(config-if)#no shutdown

S1(config)#spanning-tree mode pvst

S1(config)#spanning-tree vlan 1,10,30,50,70 root primary

S1(config)#end

S1#show spanning-tree

S1(config)#interface fastEthernet 0/6

S1(config-if)#spanning-tree portfast

S1(config-if)#spanning-tree bpduguard enable

S1(config-if)#no shutdown



            Client PC 1

Ip address 172.31.10.21

Subnet Mask 255.255.255.0

Default Gateway 172.31.10.254

Konfigurasi Switch 2

S2>enable

S2#configure terminal

S2(config)#enable password cisco

S2(config)#line consol 0

S2(config-line)#password cisco

S2(config-line)#login

S2(config-line)#line vty 0 4

S2(config-line)#password cisco

S2(config-line)#login

S2(config-line)#vlan 10

S2(config-vlan)#vlan 20

S2(config-vlan)#vlan 30

S2(config-vlan)#vlan 40

S2(config-vlan)#vlan 50

S2(config-vlan)#vlan 60

S2(config-vlan)#vlan 70

S2(config-vlan)#vlan 80

S2(config-vlan)#vlan 99

S2(config-vlan)#exit

S2(config-if)#interface fastEthernet 0/18

S2(config-if)#switchport mode access

S2(config-if)#switchport access vlan 20

S2(config-if)#no shutdown

S2(config-if)#end

S2#show vlan brief

S2(config-if-range)#interface range fastEthernet 0/1-4

S2(config-if-range)#switchport mode trunk

S2(config-if-range)#switchport native vlan 99

S2(config-if-range)#exit

S2(config-if)#interface vlan 99

S2(config-if)#ip address 172.31.99.2 255.255.255.0

S2(config-if)#no shutdown

S2(config)#spanning-tree mode pvst

S2(config)#spanning-tree vlan 1,10,20,30,40,50,60,70,80,99 root secondary

S2(config)#end

S2#show spanning-tree

S2(config)#interface fastEthernet 0/18

S2(config-if)#spanning-tree portfast

S2(config-if)#spanning-tree bpduguard enable

S2(config-if)#no shutdown

S2(config-if)#exit

S2#show running-config

            Client PC 2

Ip address 172.31.10.22

Subnet Mask 255.255.255.0

Default Gateway 172.31.20.254

Konfigurasi Switch 3

S3>enable

S3#configure terminal

S3(config)#enable password cisco

S3(config)#line consol 0

S3(config-line)#password cisco

S3(config-line)#login

S3(config-line)#line vty 0 4

S3(config-line)#password cisco

S3(config-line)#login

S3(config-line)#vlan 10

S3(config-vlan)#vlan 20

S3(config-vlan)#vlan 30

S3(config-vlan)#vlan 40

S3(config-vlan)#vlan 50

S3(config-vlan)#vlan 60

S3(config-vlan)#vlan 70

S3(config-vlan)#vlan 80

S3(config-vlan)#vlan 99

S3(config-vlan)#exit

S3(config)#interface fastEthernet 0/11

S3(config-if)#switchport mode access

S3(config-if)#switchport access vlan 10

S3(config-if)#no shutdown

S3(config-if)#end

S3#show vlan brief

S3#configure terminal

S3(config)#interface range fastEthernet 0/1-4

S3(config-if-range)#switchport mode trunk

S3(config-if-range)#switchport native vlan 99

S3(config-if-range)#exit

S3(config)#interface vlan 99

S3(config-if)#ip address 172.31.99.3 255.255.255.0

S3(config-if)#no shutdown

S3(config-if)#exit

S3(config)#spanning-tree mode pvst

S3(config)#spanning-tree vlan 20,40,60,80 root primary

S3(config)#end

S3#show spanning-tree

S3(config)#interface fastEthernet 0/11

S3(config-if)#spanning-tree portfast

S3(config-if)#spanning-tree bpduguard enable

S3(config-if)#no shutdown

S3(config-if)#exit

S3#show running-config

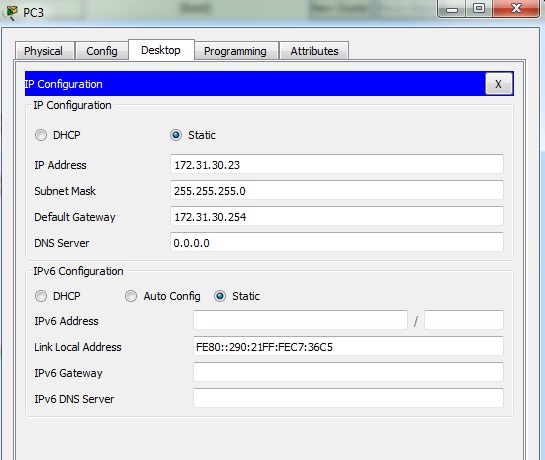

            Client PC 3

Ip address 172.31.30.23

Subnet Mask 255.255.255.0

Default Gateway 172.31.30.254

Tugas Mandiri Administrasi Jaringan

Pertemuan 3

Buatlah jaringan komputer sesuai dengan skema jaringan yang telah ditentukan.

1.  Konfigurasikan Legancy Inter-VLAN Routing.

2. Pastikan VLAN yang dibentuk dapat saling berkomunikasi.

3. Dokumentasikan konfigurasi pembuatan jaringan.

4. Upload dokumentasi jaringan ke dalam blog masing-masing.

Setting PC0

IP                                : 172.17.0.21

Subnett Mask             : 255.255.255.0

Default Gateway        : 172.17.0.1



Setting PC0

IP                                : 172.17.30.23

Subnett Mask             : 255.255.255.0

Default Gateway        : 172.17.30.1

Setting Switch

Switch>enable

Switch#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#vlan 10

Switch(config-vlan)#name Sepuluh

Switch(config-vlan)#vlan 30

Switch(config-vlan)#name tigapuluh

Switch(config-vlan)#exit

Switch(config)#interface fa0/1

Switch(config-if)#switchport mode trunk

Switch(config-if)#exit

Switch(config)#interface fa1/1

Switch(config-if)#switchport mode trunk

Switch(config-if)#exit

Switch(config)#interface fa2/1

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 10

Switch(config-if)#exit

Switch(config)#interface fa3/1

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 30

Switch(config-if)#exit

Switch(config)#exit

Setting Router

Router>enable

Router#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#interface fa0/0.10

Router(config-subif)#encapsulation dot1Q 10

Router(config-subif)#ip add 172.17.0.1 255.255.255.0

Router(config-subif)#exit

Router(config)#interface fa1/0.30

Router(config-subif)#encapsulation dot1Q 30

Router(config-subif)#ip add 172.17.30.1 255.255.255.0

Router(config-subif)#exit

Router(config)#interface fa0/0

Router(config-if)#no shut

Router(config-if)#

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

%LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10, changed state to up

exit

Router(config)#interface fa1/0

Router(config-if)#no shut

Router(config-if)#

%LINK-5-CHANGED: Interface FastEthernet1/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0, changed state to up

%LINK-5-CHANGED: Interface FastEthernet1/0.30, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0.30, changed state to up

Exit.

Router(config-if)#
